40um To 2000um Metal Cartridge Filter Industrial Barrel Filter
0~100
MOQ
100$
Price
40um To 2000um Metal Cartridge Filter Industrial Barrel Filter
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Lier
Certification: CE GB
High Light:

2000um Metal Cartridge Filter

,

40um Metal Cartridge Filter

,

Lier Industrial Barrel Filter

Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 15~30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,
Supply Ability: 1000
Specifications
Material: Stainless Steel
Applicable Object: Water Filtration
Filter Type: Filter
Specification: Customizable
Principle: Gravity Settlement Method
Scope Of Application: Food, Chemical, Mineral Processing
Product Description

Industrial Basket Strainer , Alias Cartridge Filter , Barrel Filter​




Introduction
It is mainly composed of connecting pipe, main pipe, filter basket, flange, flange cover and fasteners. When the liquid enters the filter basket through the main pipe, the solid impurity particles are blocked in the filter basket, and the clean fluid passes through the filter basket and is discharged from the filter outlet. When cleaning is required, unscrew the screw plug at the bottom of the main pipe, drain the fluid, remove the flange cover, and re-install it after cleaning. Therefore, it is extremely convenient to use and maintain



parameter

Number of holes Wire diameter mm interceptable particle size um Aperture area(%)
10 0.508 2032 36
12 0.475 1660 39
14 0.376 1438 37
16 0.315 1273 35
18 0.315 1096 39
20 0.273 955 33
22 0.234 882 31
24 0.234 785 44
26 0.234 743 41
28 0.234 673 44
30 0.234 614 47
32 0.234 560 50
36 0.234 472 54
38 0.234 455 54
40 0.193 442 51
50 0.152 356 50
60 0.122 301 49
80 0.102 216 53
100 0.081 173 54
120 0.081 131 62
150 0.065 104 31
200 0.050 74 33
300 0.035 44 30




use industry
40um To 2000um Metal Cartridge Filter Industrial Barrel Filter 0



Certificate​

40um To 2000um Metal Cartridge Filter Industrial Barrel Filter 1

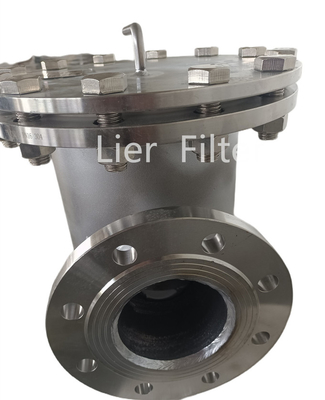

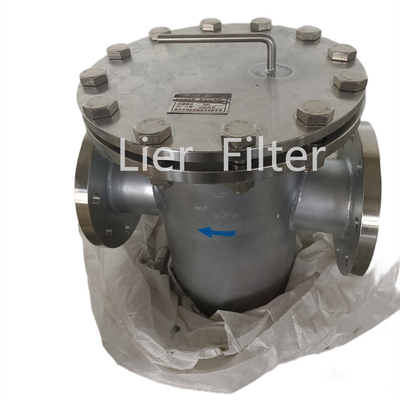

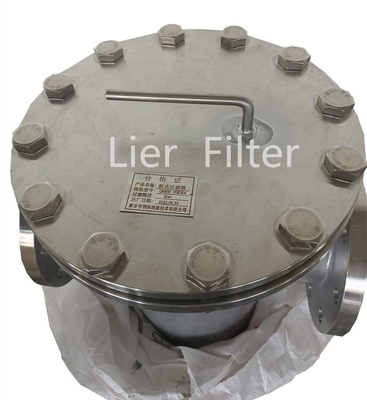

photos
40um To 2000um Metal Cartridge Filter Industrial Barrel Filter 240um To 2000um Metal Cartridge Filter Industrial Barrel Filter 3






Our factory Strength for Stainless steel filter element

1:  Filtration Specialists with 10 years ‘ experience.

2: OEM Service for you and satisfy different markets demand.

3: Widely used in Aviation , Railway, Power plant, Coal mining, Construction mining etc

4: Samples for 1 pcs and small order 5pcs are allowed.

5: Professional technical data systems guaranteed the correctness of filter.





transportation
40um To 2000um Metal Cartridge Filter Industrial Barrel Filter 4
