Industrial Basket Strainer , Customized According To Media Process Requirements
Introduction
according to the requirements of the buyer. Please contact us for more details.

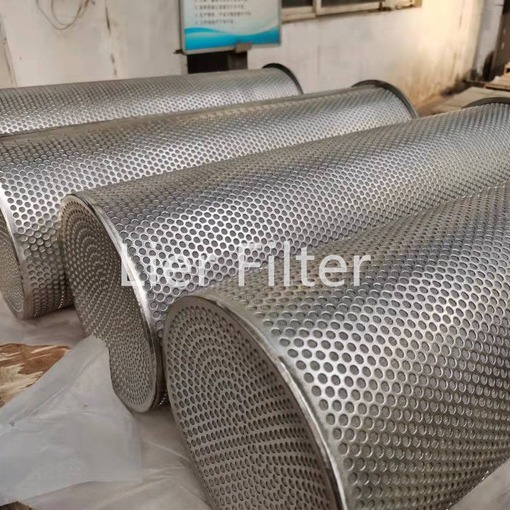

Basket filters are mainly composed of takeovers, main pipes, and filter baskets. It is composed of flange, flange cover and fasteners. When the fluid enters the filter basket through the main pipe, the solid impurity particles are blocked in the filter basket. When it needs to be cleaned, it can be rotated to open, and then reloaded after cleaning.
parameter
Number of holes | Wire diameter mm | interceptable particle sizeum | Aperture area(%) |
10 | 0.508 | 2032 | 36 |
12 | 0.475 | 1660 | 39 |
14 | 0.376 | 1438 | 37 |
16 | 0.315 | 1273 | 35 |
18 | 0.315 | 1096 | 39 |
20 | 0.273 | 955 | 33 |
22 | 0.234 | 882 | 31 |
24 | 0.234 | 785 | 44 |
26 | 0.234 | 743 | 41 |
28 | 0.234 | 673 | 44 |
30 | 0.234 | 614 | 47 |
32 | 0.234 | 560 | 50 |
36 | 0.234 | 472 | 54 |
38 | 0.234 | 455 | 54 |
40 | 0.193 | 442 | 51 |
50 | 0.152 | 356 | 50 |
60 | 0.122 | 301 | 49 |
80 | 0.102 | 216 | 53 |
100 | 0.081 | 173 | 54 |
120 | 0.081 | 131 | 62 |
150 | 0.065 | 104 | 31 |
200 | 0.050 | 74 | 33 |
300 | 0.035 | 44 | 30 |
Certificate
photos
Our factory Strength for Stainless steel filter element
1: Filtration Specialists with 10 years ‘ experience.
2: OEM Service for you and satisfy different markets demand.
3: Widely used in Aviation , Railway, Power plant, Coal mining, Construction mining etc
4: Samples for 1 pcs and small order 5pcs are allowed.
5: Professional technical data systems guaranteed the correctness of filter.
transportation
