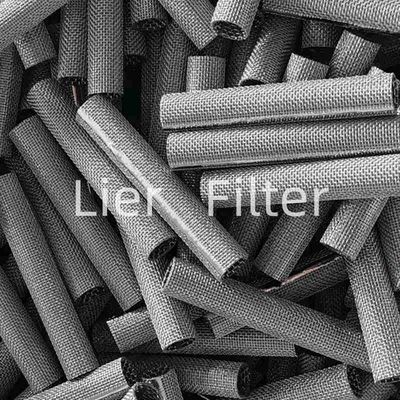

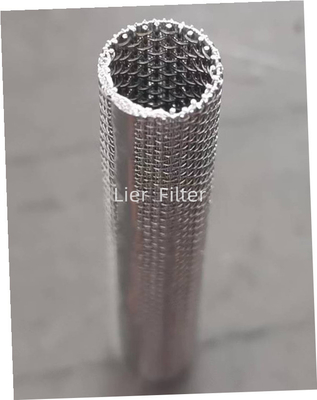

Introduction of Composite Sintered Metal Mesh Filter Elements
Several layers of plain or twilled woven wirand perforated metal(standard material S1304)are sintered together to make this special type of material.It enjoys the advantages of superior backwash,low pressure drop.It can be used in water treatment,beverage,food,metallurgy,chemical and pharmaceutical industries.Especially suitable for continuous and automatic operation process.It can not be compared with any kind of filter material.This sintered mesh material is easy to form processing and welding,it can be processed into various forms of filter elements such as circular,cylindrical,cone,corrugated.
Sintered filter element is a new type of filter material made of multi-layer metal sintered mesh, using multi-layer stainless steel mesh after special laminated pressing and vacuum sintering with high strength and overall steel.The mesh of each layer is interleaved to form a uniform and ideal filtration structure.
Our sintered mesh has been used in many industries such as aerospace,aviation,petroleum,chemical,metallurgy,machining,pharmaceutical,food,synthetic fiber,film,environment alprotection industries in respect of filtration and purification,gas-solid,liquid-solid,and gas-liquid separation,cooling,gas distribution,fluidization bed, gas sampling collection,shock reducing,sound attenuation,inflaming retarding.
Features
1.It can gradient flow in less than quiet angle, and some powder can make its inverse gradient flow;
2.This material has the features of heat transfer, good fluidization effect, high efficiency, low energy consumption;
3.Easy to process and form, good weld-ability;
4.Large operation, convenient process adjustment.
Specifications
| Standard material |
SUS316L,SUS304 |
| Available size |
less than or equal 1200x1000mm |
| Filtration ration |
1-300um |
| Special sizes |
customized |
|
construction
|
Protective Layer |
| Filter Layer |
| Dispersion Layer |
| Dispersion Layer |
| Reinforcing Layer |
| type |
nominal precision(um) |
absolute accuracy(um) |
air permeability
(L/min ·cm2·pa)
|
bubble point pressure(pa) |
| AI1 |
|
6-7 |
|
5300-6000 |
| AI2 |
2 |
8-9 |
(1-6)×10-4 |
4300-5000 |
| AI5 |
|
11-13 |
(6-10)×10-4 |
3000-3700 |
| AI10 |
10 |
16-18 |
(6-10)×10-4 |
2700-3300 |
| AI15 |
15 |
24-26 |
(1-6)×10-3 |
2000-2600 |
| AI20 |
20 |
28-32 |
(1-6)×10-3 |
1800-2300 |
| AI25 |
25 |
34-36 |
(6-10)×10-3 |
1400-1900 |
| AI30 |
30 |
40-45 |
(6-10)×10-3 |
1200-1700 |
| AI40 |
40 |
50-55 |
(1-6)×10-2 |
1000-1500 |
| AI50 |
50 |
71-80 |
(1-6)×10-2 |
900-1200 |
| AI70 |
70 |
80-95 |
(6-10)×10-2 |
700-1100 |
| AI100 |
100 |
110-120 |
≥5×10-2 |
650-1000 |
Main applications
1.Distribution and cooling material in high temperature.
2.Material used for gas distribution and fludization bed.
3.Material requiring high precision,stable perfermance in high temperature.
4.High pressure backwashed oil filter.
