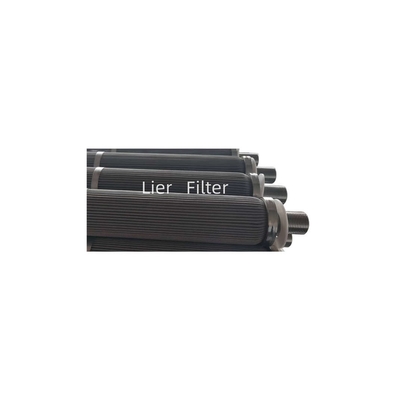

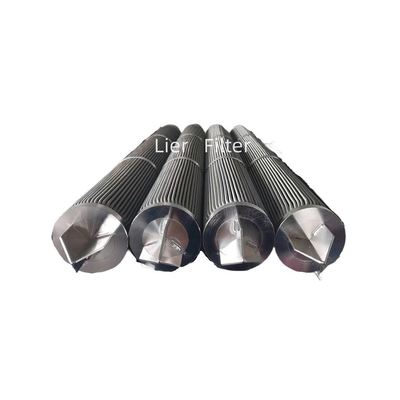

Introduction of Pleated Filter Cartridge
Pleated filter cartridge,or polymer melt filter cartridge, is made of stainless steel wire mesh,or sintered stainless fiber felt. The former one is made of stainless steel wire by weaving together and this kind of filter cartridge takes the advantages of smooth wire pore,easy to wash, high temperature resistance,corrosion resistance,fast wire mesh without migration,long service life,etc. The sintered stainless fiber felt is a kind of high precision filter material made of stainless steel fiber by sintering in high temperature, and this kind of filter cartridge takes the advantages of high porosity good permeability,high dirt holding capacity,high regeneration capacity, etc.
Parameters
| Main characters |
Large filtration area |
| High precision |
|
Main connections
|
Standard(e.g.222.220.226) |
| Fast interface |
| Thread |
| Flange |
| Tie rod |
| Special customized |
|
Applications
|
Mainly used in high molecular polymer,water,oil treatment, high temperature gas filtration,medicine filtration, etc. |
| Filter Precision |
1-300um,other precision customized |
| Material |
316L,304 |
| Size |
customized |
| Filter area |
according to the value of processing capacity |
| Applicable temperature |
-200℃-600℃,normal temperature 480℃ |
| Filter material classification |
stainless Steel Mesh, 316L stainless steel sintered felt |
| Filter medium |
gas, liquid, solid particles and other filter media |
| Whether it contains an inner and outer skeleton |
supporting frame |
| Renewable or not |
renewable and reversible for multiple uses |
Features
1.High filtration accuracy, stable aperture, small pressure loss, aperture does not change with pressure. It can effectively remove suspended matter and particles, with good filtration precision and purification effect.
2.High porosity, uniform and smooth pores, small initial resistance, easy backwash, strong regeneration ability, long service life, especially suitable for fluid distribution, homogenization treatment and other occasions requiring high uniformity.
3.High mechanical strength, good rigidity, good plasticity, oxidation resistance, corrosion resistance, do not need additional skeleton support protection, easy installation and use, easy maintenance, good assembly, can be used for welding, bonding, processing.
Scope of Use
Related Photos
The Reasons for Choosing Us
Our Team
Certification
Packing
Transportation
FAQ
Q:What parameters need to provide for the design of the filter element?
A:Length, width, height, material, diameter, precision, connection method, etc. If there are other necessary parameters, please explain together.
Q:How many years of production and export experience do you have?
A:We have more than 20 years of production experience and 15 years of export experience. Our products have been used all over the world and have a good reputation, please rest assured to use.
Q:What does the mesh of the filter indicate?
A:The mesh of the filter refers to the particle size or coarseness of the material, but also refers to the number of holes in an area of 1 inch x 1 inch, that is, the number of holes in the screen.The number of mesh holes through which the material can pass is defined as the number of mesh. For example, 200 mesh is the material can pass through a screen with 200 mesh holes in 1 inch x 1 inch. The higher the mesh number, the finer the particle size of the material, and the smaller the mesh, the larger the particle size of the material.
