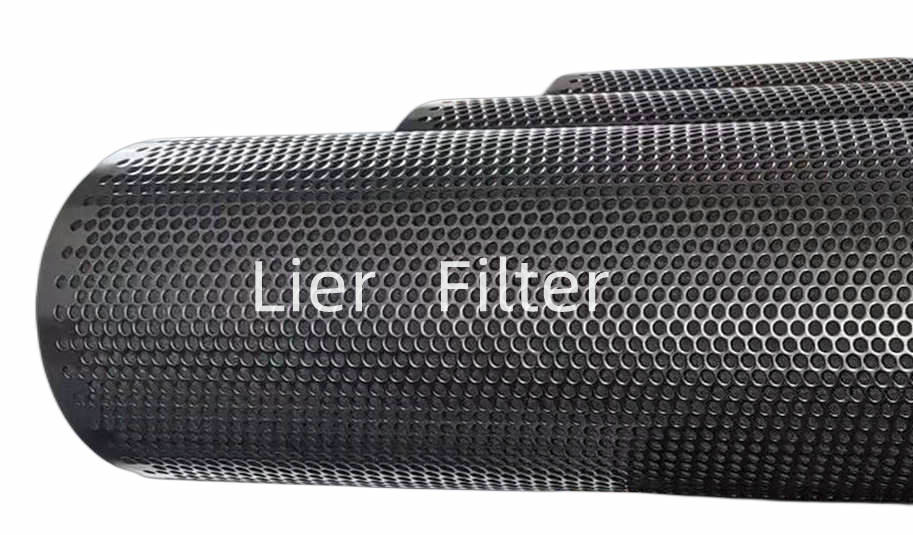

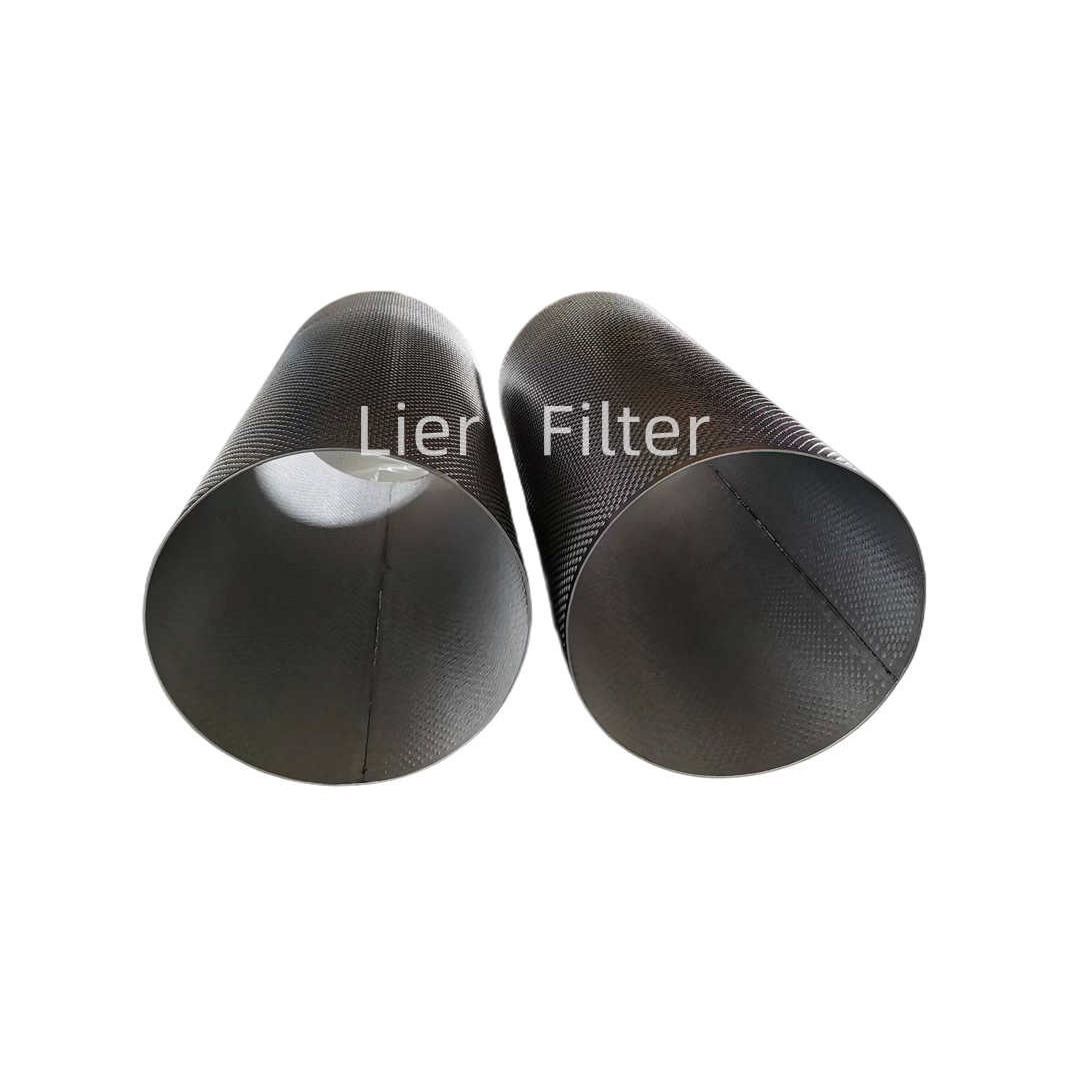

Several layers of plain or twilled woven wirand perforated metal(standard material S1304)are sintered together to make this special type of material.It enjoys the advantages of superior backwash,low pressure drop.It can be used in water treatment,beverage,food,metallurgy,chemical and pharmaceutical industries.Especially suitable for continuous and automatic operation process.It can not be compared with any kind of filter material.This sintered mesh material is easy to form processing and welding,it can be processed into various forms of filter elements such as circular,cylindrical,cone,corrugated.
1.The material of perforated metal plate is 304,or 316L.
2.Special shaped product can be made on request.
1.It can gradient flow in less than quiet angle, and some powder can make its inverse gradient flow;
2.This material has the features of heat transfer, good fluidization effect, high efficiency, low energy consumption;
3.Easy to process and form, good weld-ability;
4.Large operation, convenient process adjustment.
1.Petrochemical industry of high temperature gas filtration;
2.Steam removal of impurities filtration, material decarbon filtration and fine filtration ultrafine crystal catalyst filtration washing recovery;
3.Metallurgy industry of high temperature flue gas purification;
4.Thermal power generation, nuclear power generation industry dust and tail gas purification;
5.The precision filtration of liquid products,liquid raw materials,pharmaceutical intermediates in the chemical industry.
6mm-1.5m or customized
1.0mm 1.7mm (standard thickness) 3.5mm or customized
Number of layers
less than or equal 1200x1000mm
1.High temperature resistance.
2.High corrosion resistance.
3.Easy to backwash,reusable.
Q:Are you trading company or manufacturer?
A:We have our own factory and production line. Everything is very flexible, no need to worry about additional costs. At the same time, quality can also be guaranteed.
Q:How many years of production and export experience do you have?
A:We have more than 20 years of production experience and 15 years of export experience. Our products have been used all over the world and have a good reputation, please rest assured to use.
Q:What does the mesh of the filter indicate?
A:The mesh of the filter refers to the particle size or coarseness of the material, but also refers to the number of holes in an area of 1 inch x 1 inch, that is, the number of holes in the screen.The number of mesh holes through which the material can pass is defined as the number of mesh. For example, 200 mesh is the material can pass through a screen with 200 mesh holes in 1 inch x 1 inch. The higher the mesh number, the finer the particle size of the material, and the smaller the mesh, the larger the particle size of the material.
