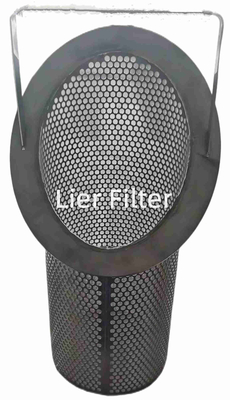

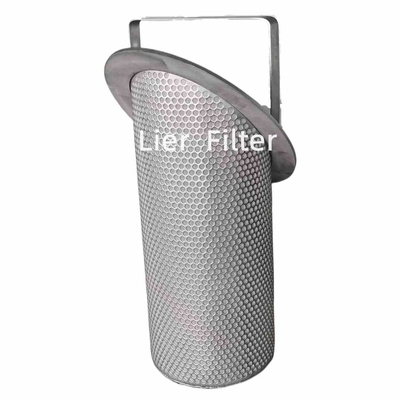

Several layers of plain or twilled woven wirand perforated metal(standard material S1304)are sintered together to make this special type of material.It enjoys the advantages of superior backwash,low pressure drop.It can be used in water treatment,beverage,food,metallurgy,chemical and pharmaceutical industries.Especially suitable for continuous and automatic operation process.It can not be compared with any kind of filter material.This sintered mesh material is easy to form processing and welding,it can be processed into various forms of filter elements such as circular,cylindrical,cone,corrugated.
1.The material of perforated metal plate is 304,or 316L.
2.Special shaped product can be made on request.
1.It can gradient flow in less than quiet angle, and some powder can make its inverse gradient flow;
2.This material has the features of heat transfer, good fluidization effect, high efficiency, low energy consumption;
3.Easy to process and form, good weld-ability;
4.Large operation, convenient process adjustment.
1.Petrochemical industry of high temperature gas filtration;
2.Steam removal of impurities filtration, material decarbon filtration and fine filtration ultrafine crystal catalyst filtration washing recovery;
3.Oil field water fine filtration;
4.Metallurgy industry of high temperature flue gas purification;
5.Solid boiling bed exhaust dust recovery;
6.Thermal power generation, nuclear power generation industry dust and tail gas purification;
7.The precision filtration of liquid products,liquid raw materials,pharmaceutical intermediates in the chemical industry.
Work stress |
1.5-2.5pa |
Diameter |
6mm-1.5m or customized |
Thickness |
1.0mm 1.7mm (standard thickness) 3.5mm or customized |
Number of layers |
3/4/5/6 layers |
Quality |
100% SS FIBER |
Uses |
dust |
Pore size |
0.2um-120um |
1.High filtration accuracy, stable aperture, small pressure loss, aperture does not change with pressure. It can effectively remove suspended matter and particles, with good filtration precision and purification effect.
2.High porosity, uniform and smooth pores, small initial resistance, easy backwash, strong regeneration ability, long service life, especially suitable for fluid distribution, homogenization treatment and other occasions requiring high uniformity.
3. High mechanical strength, good rigidity, good plasticity, oxidation resistance, corrosion resistance, do not need additional skeleton support protection, easy installation and use, easy maintenance, good assembly, can be used for welding, bonding, processing.
Q:What parameters need to provide for the design of the filter element?
A:Length, width, height, material, diameter, precision, connection method, etc. If there are other necessary parameters, please explain together.
Q:Are you trading company or manufacturer?
A:We have our own factory and production line. Everything is very flexible, no need to worry about additional costs. At the same time, quality can also be guaranteed.
Q:How many years of production and export experience do you have?
A:We have more than 20 years of production experience and 15 years of export experience. Our products have been used all over the world and have a good reputation, please rest assured to use.
