Introduction of Composite Sintered Metal Mesh Filter Elements
Several layers of plain or twilled woven wirand perforated metal(standard material S1304)are sintered together to make this special type of material.It enjoys the advantages of superior backwash,low pressure drop.It can be used in water treatment,beverage,food,metallurgy,chemical and pharmaceutical industries.Especially suitable for continuous and automatic operation process.It can not be compared with any kind of filter material.This sintered mesh material is easy to form processing and welding,it can be processed into various forms of filter elements such as circular,cylindrical,cone,corrugated.
Sintered filter element is a new type of filter material made of multi-layer metal sintered mesh, using multi-layer stainless steel mesh after special laminated pressing and vacuum sintering with high strength and overall steel.The mesh of each layer is interleaved to form a uniform and ideal filtration structure.
Our sintered mesh has been used in many industries such as aerospace,aviation,petroleum,chemical,metallurgy,machining,pharmaceutical,food,synthetic fiber,film,environment alprotection industries in respect of filtration and purification,gas-solid,liquid-solid,and gas-liquid separation,cooling,gas distribution,fluidization bed, gas sampling collection,shock reducing,sound attenuation,inflaming retarding.
Features
1.It can gradient flow in less than quiet angle, and some powder can make its inverse gradient flow;
2.This material has the features of heat transfer, good fluidization effect, high efficiency, low energy consumption;
3.Easy to process and form, good weld-ability;
4.Large operation, convenient process adjustment.
Main applications
1.Distribution and cooling material in high temperature.
2.Material used for gas distribution and fludization bed.
3.Material requiring high precision,stable perfermance in high temperature.
4.High pressure backwashed oil filter.
Specifications
| Standard material |
SUS316L,SUS304 |
| Available size |
less than or equal 1200x1000mm |
| Filtration ration |
1-300um |
| Special sizes |
customized |
| type |
nominal precision(um) |
absolute accuracy(um) |
air permeability
(L/min ·cm2·pa)
|
bubble point pressure(pa) |
| AI1 |
|
6-7 |
|
5300-6000 |
| AI2 |
2 |
8-9 |
(1-6)×10-4 |
4300-5000 |
| AI5 |
|
11-13 |
(6-10)×10-4 |
3000-3700 |
| AI10 |
10 |
16-18 |
(6-10)×10-4 |
2700-3300 |
| AI15 |
15 |
24-26 |
(1-6)×10-3 |
2000-2600 |
| AI20 |
20 |
28-32 |
(1-6)×10-3 |
1800-2300 |
| AI25 |
25 |
34-36 |
(6-10)×10-3 |
1400-1900 |
| AI30 |
30 |
40-45 |
(6-10)×10-3 |
1200-1700 |
| AI40 |
40 |
50-55 |
(1-6)×10-2 |
1000-1500 |
| AI50 |
50 |
71-80 |
(1-6)×10-2 |
900-1200 |
| AI70 |
70 |
80-95 |
(6-10)×10-2 |
700-1100 |
| AI100 |
100 |
110-120 |
≥5×10-2 |
650-1000 |

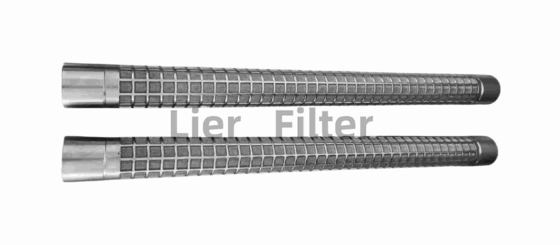

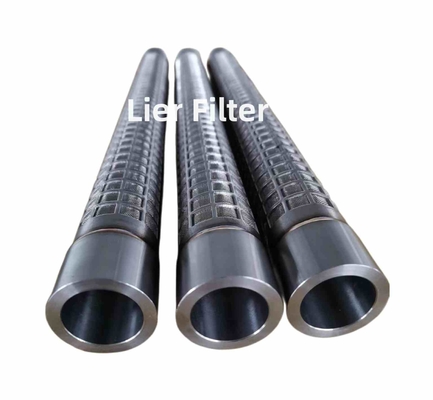

Related Photos
The Reasons for Choosing Us
1.Team Strength
Production technical team from state-owned military enterprises, product design and quality are excellent guaranteed through strict checks.
2.Scientific Research Force
Our company have 8 scientific research patents, 6 pieces sintering equipment imported from Germany.We have carried out scientific research cooperation and establish laboratories with a number of local higher institutions.At the same time,we are constantly exploring deeper fields.
3.Intimate Service
From pre-sale to after-sale,you will have a one-to-one dedicated service staff,they can solve your problems at any time.
4.Credit Guarantee
To complete your trust to us: time, quality and quantity are guaranteed;whole-process logistics monitoring;after-sale worry free.
Our Team
Certification
Packing
Transportation
FAQ
Q: What parameters need to provide for the design of the filter element?
A: Length, width, height, material, diameter, precision, connection method, etc. If there are other necessary parameters, please explain together.
Q: Are you trading company or manufacturer?
A: We have our own factory and production line. Everything is very flexible, no need to worry about additional costs. At the same time, quality can also be guaranteed.
Q: How many years of production and export experience do you have?
A: We have more than 20 years of production experience and 15 years of export experience. Our products have been used all over the world and have a good reputation, please rest assured to use.
