Industrial Filter Element , Resistance At Rated Flow≤0.05MPa
Introduction
Once the water filter enters the plumbing system, water will enter the water filter from the water inlet. The filtered water will flow out from the water outlet. When water impurities can pass through the mesh core, it will be intercepted on the mesh core due to its larger volume than the mesh core hole. When accumulated to a fixed amount, there is a fixed differential pressure between the inlet and outlet. At this time, the rotatable mesh core is automatically backwashed in turn, and the impurities will be discharged from the sewage outlet by itself. In this way, the user can cycle back and forth according to the water impurities
parameter
Type |
Model |
Dimension(mm) |
Connection |
Bag |
Flow rate(m3/h) |
||
Diameter |
Height |
Size |
Q'ty(pc) |
||||
Single Bag Filters |
BJD1 |
220 |
550 |
2''Tri-Clamp(Coupling)/Flanged Type/Thread( NPT/BSP) |
#1 |
One |
20 |
BJD2 |
220 |
950 |
#2 |
40 |
|||
BJD4 |
130 |
650 |
#4 |
12 |
|||
Muti-Bag Filters |
BJD2-2 |
400 |
1550 |
3'', 4", 5" Tri-Clamp(Coupling)/Flanged Type/Thread( NPT/BSP) |
#2 |
Two |
80 |
BJD2-3 |
500 |
1550 |
#2 |
Three |
120 |
||
BJD2-4 |
550 |
1550 |
#2 |
Four |
160 |
||
BJD2-5 |
600 |
1550 |
#2 |
Five |
200 |
Certificate

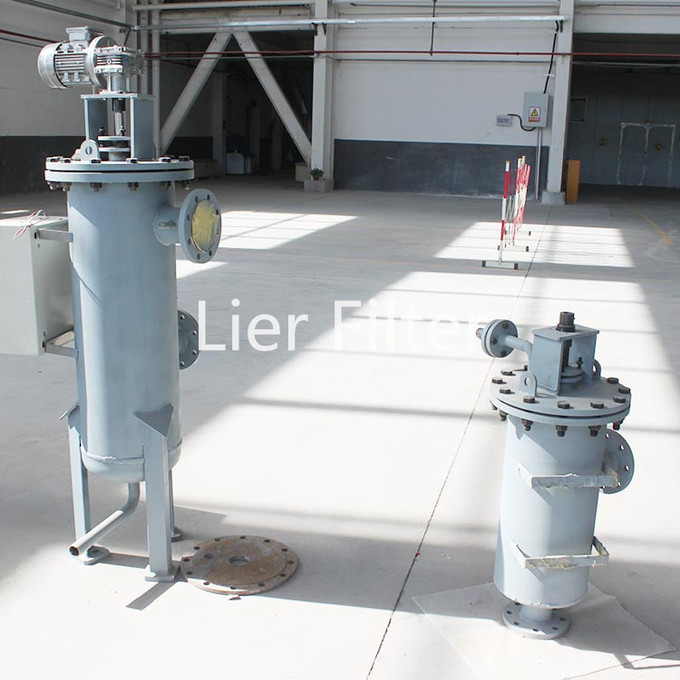

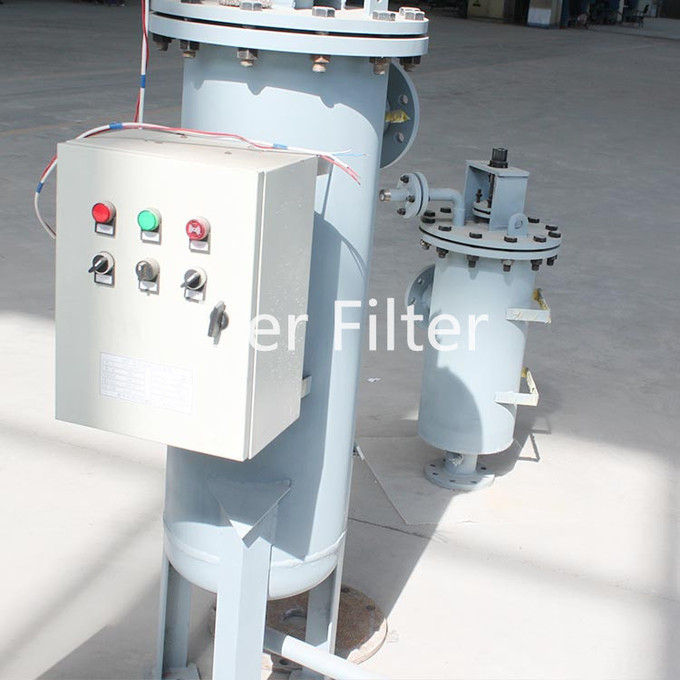

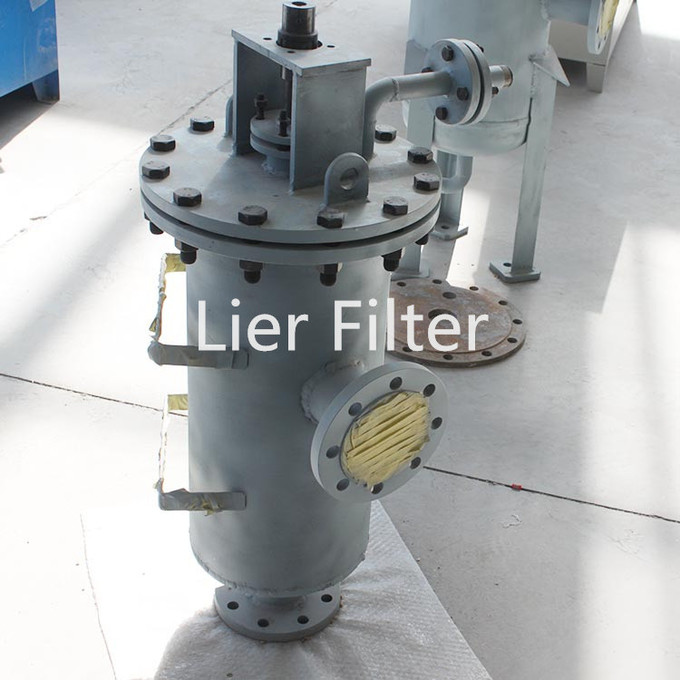

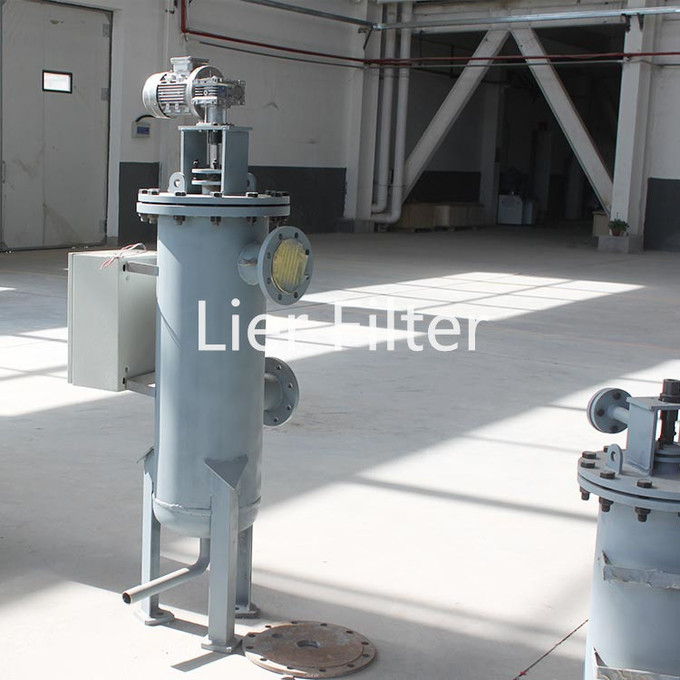

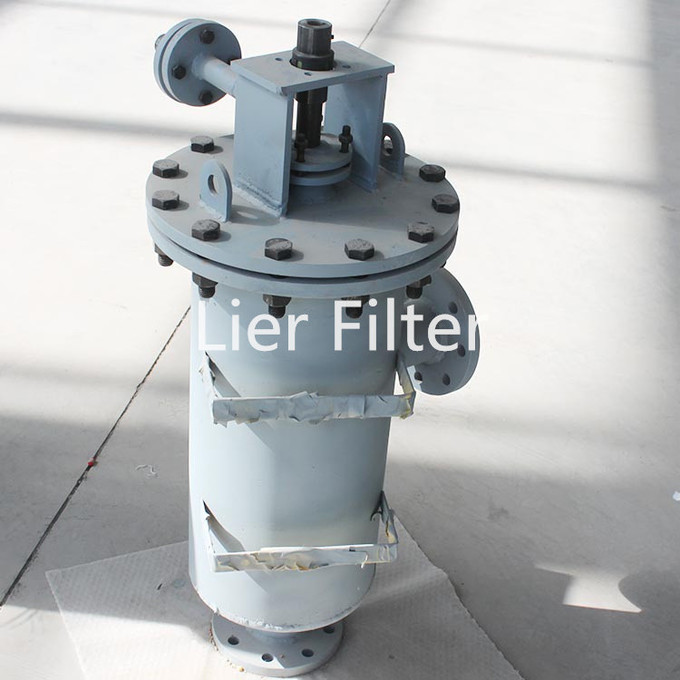

photos
Company Profile
Xinxiang Lier Filter Technology Co.,Ltd was established in 2005, which has more than 10 years history factory,our main products are as follows:
1. Sintered stainless steel mesh
2. Sintered stainless steel fiber felt
3. Sintered filter cartridge, pleated cartridge
4. Sintered filter disc
5. Sintered metal powder
All kinds of industrial filters
