Stainless Steel 304 316 Perforated Metal Wire Mesh 1m-20m Length
0~100
MOQ
100$
Price
Stainless Steel 304 316 Perforated Metal Wire Mesh 1m-20m Length
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Lier
Certification: CE GB
High Light:

SS316 Perforated Metal Wire Mesh

,

304 Perforated Metal Wire Mesh 1m

,

20m Length perforated stainless tube

Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 15~30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,
Supply Ability: 1000
Specifications
Material: STAINLESS STEEL WIRE
Sample: Avaliable
Thickness: 0.2mm, 0.02mm-1.6mm
Technique: Perforated
Application: Filters
Product Description

Perforated Metal Wire Mesh , The Mesh Surface Is Flat , Smooth And Beautiful



Introduction

Stainless steel Perforated Sintered Wire Mesh

This type of Stainless Steel Filter Element is made by the filter media which is made by taking several layers of woven wire mesh and sintered them to a layer of perforated metal.The woven wire mesh layers consist of a fil

ter layer,a protective layer and possibly a buffer layer between the fine mesh layer and the perforated plate.The perforated plate is then added as the base and the entire structure is sintered together to form a very strong yet tractable plate.Due to the support of the perforated plate,this type of sintered wire mesh laminate has a high resistance to pressure and high mechanical strength.It is suitable for a variety of applications which require fine filtration,but also the need to protect and preserve the filtration layer.One example of an application is in oil wells,where fine particles need to filtered under extremely high pressure condition.




Features
The mesh surface is flat, smooth, beautiful, sturdy and durable, and has a wide range of uses.
Specifications: coil thickness 0.2mm - 0.7mm, length 1m-20m, aperture 0.8mm - 10mm;
The thickness of the plate is 0.3mm - 30mm, the size is 1-2m1220*2400 (special size can be customized), and the minimum hole diameter can be punched to 0.6mm.
Manufacturing: stamping



parameter

Product Perforated Tube
Material Stainless Steel 304, 316 etc.
Mesh Thickness 0.1-15mm
erforated Hole Cylinder type0.1-200mm
  The diameter and length is at your requirement.
Porosity 15%-45%




photos

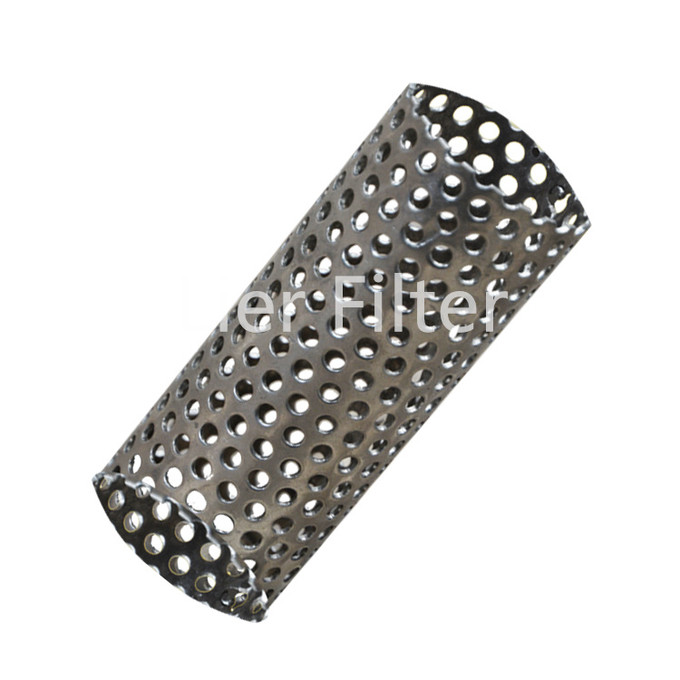

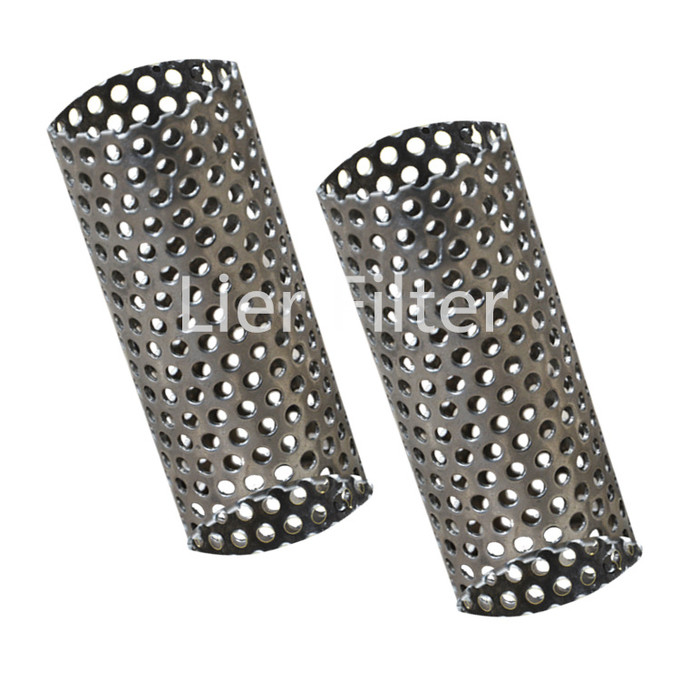

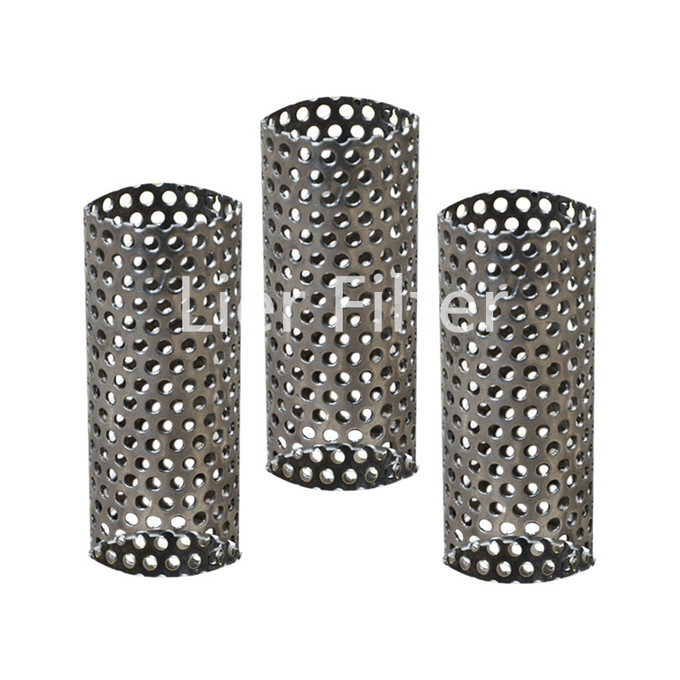

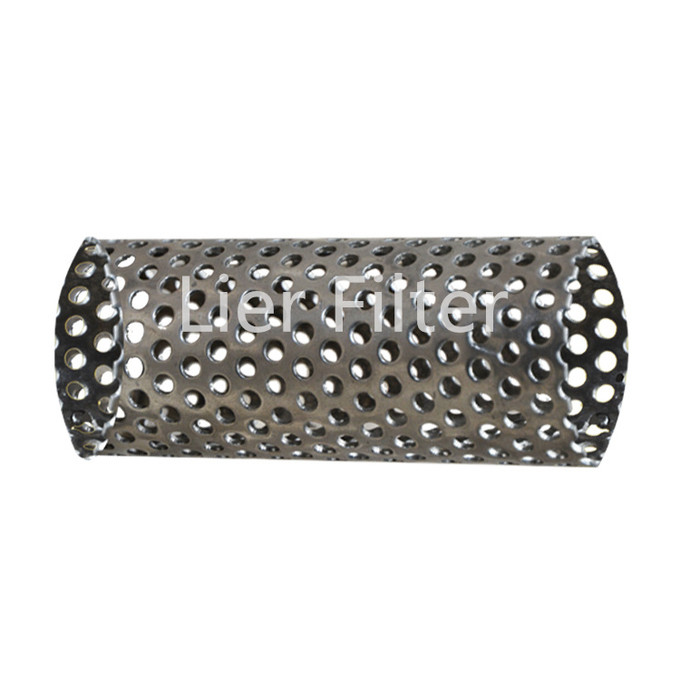

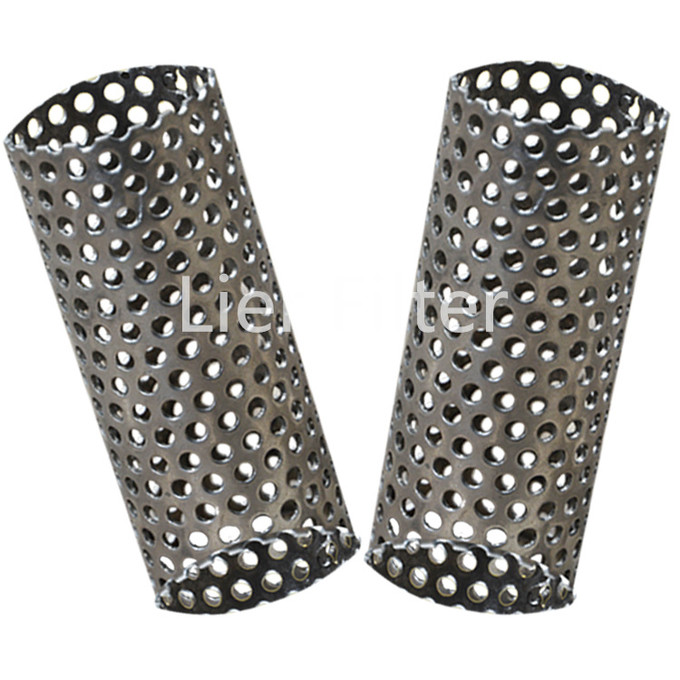

Stainless Steel 304 316 Perforated Metal Wire Mesh 1m-20m Length 0Stainless Steel 304 316 Perforated Metal Wire Mesh 1m-20m Length 1
Company Profile
Xinxiang Lier Filter Technology Co.,Ltd was established in 2005, which has more than 10 years history factory,our main products are as follows:
1. Sintered stainless steel mesh
2. Sintered stainless steel fiber felt
3. Sintered filter cartridge, pleated cartridge
4. Sintered filter disc
5. Sintered metal powder
All kinds of industrial filters



Our company

Professional from the focus, quality comes from power. In nearly 20 years, the company has independently the sintered stainless steel net, stainless steel fiber sintered felt, iron chromium aluminum fiber sintered felt the development and production, is the domestic can from sintering filter material production to all kinds of filter processing molding (core), as well as a variety of filtration system design and manufacture of professional manufacturers. Through many years of accumulation and innovation, the company's products have been in metallurgy, petrochemical, water treatment, pharmaceutical, fine chemical, chemical fiber, widely used in electrical, mechanical and other industries.



transportation
Stainless Steel 304 316 Perforated Metal Wire Mesh 1m-20m Length 2
