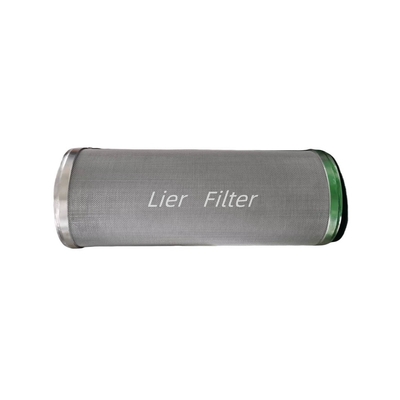

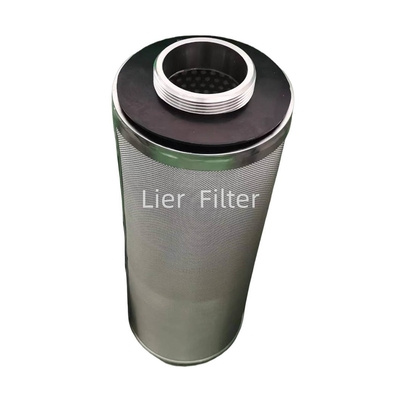

Introduction of Composite Sintered Mesh Filter Cartridge
Several layers of plain or twilled woven wirand perforated metal(standard material SS304)are sintered together to make this special type of material.It enjoys the advantages of superior backwash,low pressure drop.It can be used in water treatment,beverage,food,metallurgy,chemical and pharmaceutical industries.Especially suitable for continuous and automatic operation process.It can not be compared with any kind of filter material.This sintered mesh material is easy to form processing and welding,it can be processed into various forms of filter elements such as circular,cylindrical,cone,corrugated.
Sintered filter element is a new type of filter material made of multi-layer metal sintered mesh, using multi-layer stainless steel mesh after special laminated pressing and vacuum sintering with high strength and overall steel.The mesh of each layer is interleaved to form a uniform and ideal filtration structure.
Our sintered mesh has been used in many industries such as aerospace,aviation,petroleum,chemical,metallurgy, machining,pharmaceutical,food,synthetic fiber,film,environment alprotection industries in respect of filtration and purification,gas-solid,liquid-solid,and gas-liquid separation,cooling,gas distribution,fluidization bed, gas sampling collection,shock reducing,sound attenuation,inflaming retarding.
Features
1.High filtration accuracy, stable aperture, small pressure loss, aperture does not change with pressure. It can effectively remove suspended matter and particles, with good filtration precision and purification effect.
2.High porosity, uniform and smooth pores, small initial resistance, easy backwash, strong regeneration ability, long service life, especially suitable for fluid distribution, homogenization treatment and other occasions requiring high uniformity.
3.High mechanical strength, good rigidity, good plasticity, oxidation resistance, corrosion resistance, do not need additional skeleton support protection, easy installation and use, easy maintenance, good assembly, can be used for welding, bonding, processing.
Main applications
1.Distribution and cooling material in high temperature.
2.Material used for gas distribution and fludization bed.
3.Material requiring high precision,stable perfermance in high temperature.
4.High pressure backwashed oil filter.
Specifications
| Standard material |
SUS316L,SUS304 |
| Available size |
less than or equal 1200x1000mm |
| Filtration ration |
1-300um |
| Special sizes |
customized |
| type |
nominal precision(um) |
absolute accuracy(um) |
air permeability
(L/min ·cm2·pa)
|
bubble point pressure(pa) |
| AI1 |
|
6-7 |
|
5300-6000 |
| AI2 |
2 |
8-9 |
(1-6)×10-4 |
4300-5000 |
| AI5 |
|
11-13 |
(6-10)×10-4 |
3000-3700 |
| AI10 |
10 |
16-18 |
(6-10)×10-4 |
2700-3300 |
| AI15 |
15 |
24-26 |
(1-6)×10-3 |
2000-2600 |
| AI20 |
20 |
28-32 |
(1-6)×10-3 |
1800-2300 |
| AI25 |
25 |
34-36 |
(6-10)×10-3 |
1400-1900 |
| AI30 |
30 |
40-45 |
(6-10)×10-3 |
1200-1700 |
| AI40 |
40 |
50-55 |
(1-6)×10-2 |
1000-1500 |
| AI50 |
50 |
71-80 |
(1-6)×10-2 |
900-1200 |
| AI70 |
70 |
80-95 |
(6-10)×10-2 |
700-1100 |
| AI100 |
100 |
110-120 |
≥5×10-2 |
650-1000 |
Related Photos
The Reasons for Choosing Us
Our Team
Certification
Packing
Transportation
FAQ
Q:Are you trading company or manufacturer?
A:We have our own factory and production line. Everything is very flexible, no need to worry about additional costs. At the same time, quality can also be guaranteed.
Q:How many years of production and export experience do you have?
A:We have more than 20 years of production experience and 15 years of export experience. Our products have been used all over the world and have a good reputation, please rest assured to use.
Q:What parameters need to provide for the design of the filter element?
A:Length, width, height, material, diameter, precision, connection method, etc. If there are other necessary parameters, please explain together.
