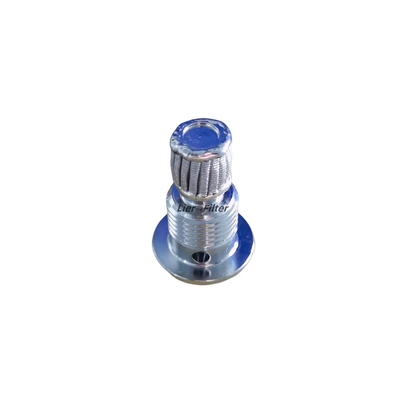

Introduction of Sintered Multi-layer Valve Filter Element
Sintered multi-layer valve filter element is welded by vacuum electron beam,used for filtration of hydraulic oil and gas in hydraulic and air control system.The features of it are high precision,good rigidity,lower resistance,large flow capacity.And also it has advantages of cleanness,easy use,stable filtering aperture and longer service,it is alternative for sintered bronze powder filter element(the first generation valve filter),and metal mesh filter supported by framework(the second generation valve filter)and even imported wire wound filter element ,to make the serve system more stable and morereliable.It is widely used in many fields such as aerospace,aviation, hydraulic machine,precision tool and automatic control.
Product Features
1. Large welding penetration, small error and high weld strength;
2. Narrow weld, generally only 1-1.5mm, very suitable for small size filter element filter plate manufacturing (solve the original impossible problem);
3. Small deformation, high qualified rate, stable quality;
4. Because the welding does not oxidize, the weld is fine, the element is beautiful;
5. Can replace imported and used for military products.
Technical Parameters
| Working pressure |
Less than or equal to 32MPa |
| Rated flow |
10~100L/min |
| Filtration accuracy |
3um (can be customized) |
| Operating temperature |
-30℃ ~ 90℃ |
| Working medium |
hydraulic oil, aviation hydraulic oil and other media |
Sintered Filter Element Product Parameters
| type |
nominal precision(um) |
absolute accuracy(um) |
air permeability
(L/min ·cm2·pa)
|
bubble point pressure(pa) |
| AI1 |
|
6-7 |
|
5300-6000 |
| AI2 |
2 |
8-9 |
(1-6)×10-4 |
4300-5000 |
| AI5 |
|
11-13 |
(6-10)×10-4 |
3000-3700 |
| AI10 |
10 |
16-18 |
(6-10)×10-4 |
2700-3300 |
| AI15 |
15 |
24-26 |
(1-6)×10-3 |
2000-2600 |
| AI20 |
20 |
28-32 |
(1-6)×10-3 |
1800-2300 |
| AI25 |
25 |
34-36 |
(6-10)×10-3 |
1400-1900 |
| AI30 |
30 |
40-45 |
(6-10)×10-3 |
1200-1700 |
| AI40 |
40 |
50-55 |
(1-6)×10-2 |
1000-1500 |
| AI50 |
50 |
71-80 |
(1-6)×10-2 |
900-1200 |
| AI70 |
70 |
80-95 |
(6-10)×10-2 |
700-1100 |
| AI100 |
100 |
110-120 |
≥5×10-2 |
650-1000 |
Product Advantages
1.Filtration Specialists with 10 years’ experience.
2.OEM Service for you and satisfy different markets demand.
3.Widely used in aviation, railway, power plant, coal mining, construction mining, etc.
4.Samples for 1 pcs and small order 5pcs are allowed.
5.Professional technical data systems guaranteed the correctness of filter.
Scope of Use

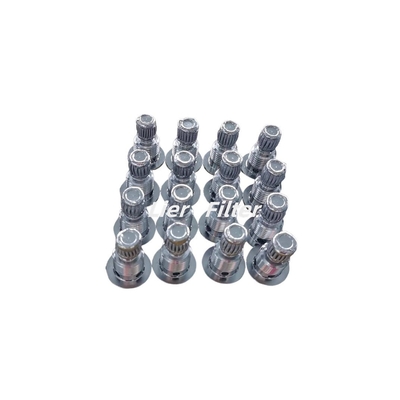

Related Photos
The Reason for Choosing Us
1.Team Strength
Production technical team from state-owned military enterprises, product design and quality are excellent guaranteed through strict checks.
2.Scientific Research Force
Our company have 8 scientific research patents, 6 pieces sintering equipment imported from Germany.We have carried out scientific research cooperation and establish laboratories with a number of local higher institutions.At the same time,we are constantly exploring deeper fields.
3.Intimate Service
From pre-sale to after-sale,you will have a one-to-one dedicated service staff,they can solve your problems at any time.
4.Credit Guarantee
To complete your trust to us: time, quality and quantity are guaranteed;whole-process logistics monitoring;after-sale worry free.
Our Certificate
Packing
Transportation
FAQ
Q:How many years of production and export experience do you have?
A:We have more than 20 years of production experience and 15 years of export experience. Our products have been used all over the world and have a good reputation, please rest assured to use.
Q:Are you trading company or manufacturer?
A:We have our own factory and production line. Everything is very flexible, no need to worry about additional costs. At the same time, quality can also be guaranteed.
Q: What parameters need to provide for the design of the filter element?
A: Length, width, height, material, diameter, precision, connection method, etc. If there are other necessary parameters, please explain together.
