Introduction of Standard Sintered Mesh Filter
Usually standard sintered mesh consists five layers,the protective layer,the filter layer,the dispersion layer and two reinforcing meshes.It provides excellent performances such as high precision and strength,so it is ideal filter medium for applications requiring high strength and precision.
Thanks to its surface filtration construction,and smooth wire of the mesh,it is good at backwashing and regeneration.Therefore,it can be reused for along time,and is especially suitable for continuous and automatic operation,which exc-eeds any other kind of filter material.
Furthermore,this mesh is easy to be formed,machined and welded.It can be produced into many kinds of shapes such as circular,cartridge,cone and pleats.
Features
1. High strength:extreme mechanical strength and pressure tolerance,can be machined,welded and assembled.
2. High precision:consistant filter property in media grades,without apertures changing during operation.
3. Heat resistant:can be continuously used in temperature ranging from -200℃ to 600℃ and filtering in acid and alkali conditions.
4.Cleanable:backwash and clean easily,can be reused with longer service span,and can be cleaned by means of ways,such as backstream,filtration liquid,ultrasonic,dissolution and baking.
Applications
1.Petrochemical industry of high temperature gas filtration;
2.Steam removal of impurities filtration, material decarbon filtration and fine filtration ultrafine crystal catalyst filtration washing recovery;
3.Oil field water fine filtration;
4.Metallurgy industry of high temperature flue gas purification;
5.Solid boiling bed exhaust dust recovery;
6.Thermal power generation, nuclear power generation industry dust and tail gas purification;
7.The precision filtration of liquid products,liquid raw materials,pharmaceutical intermediates in the chemical industry.
Specification
1.material: SS316L
2.Size:1200*1000mm
3.Special specification can be made on your request
Parameters
|
construction
|
Protective Layer |
| Filter Layer |
| Dispersion Layer |
| Reinforcing Layer |
| Reinforcing Layer |
| type |
nominal precision(um) |
absolute accuracy(um) |
air permeability
(L/min ·cm2·pa)
|
bubble point pressure(pa) |
| AI1 |
|
6-7 |
|
5300-6000 |
| AI2 |
2 |
8-9 |
(1-6)×10-4 |
4300-5000 |
| AI5 |
|
11-13 |
(6-10)×10-4 |
3000-3700 |
| AI10 |
10 |
16-18 |
(6-10)×10-4 |
2700-3300 |
| AI15 |
15 |
24-26 |
(1-6)×10-3 |
2000-2600 |
| AI20 |
20 |
28-32 |
(1-6)×10-3 |
1800-2300 |
| AI25 |
25 |
34-36 |
(6-10)×10-3 |
1400-1900 |
| AI30 |
30 |
40-45 |
(6-10)×10-3 |
1200-1700 |
| AI40 |
40 |
50-55 |
(1-6)×10-2 |
1000-1500 |
| AI50 |
50 |
71-80 |
(1-6)×10-2 |
900-1200 |
| AI70 |
70 |
80-95 |
(6-10)×10-2 |
700-1100 |
| AI100 |
100 |
110-120 |
≥5×10-2 |
650-1000 |

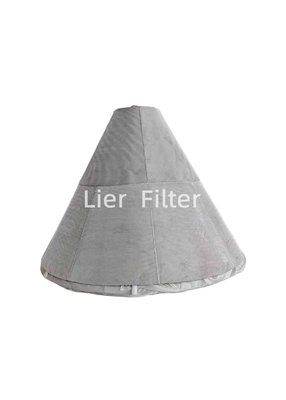

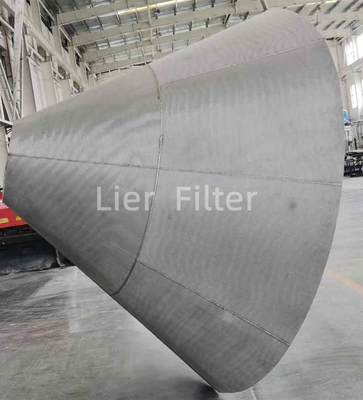

Related Photos
Product Advantages
1.High temperature resistance.
2.High corrosion resistance.
3.Easy to backwash,reusable.
4.High precision.
5.High strength.
