Single Bag Industrial Metal Filter Element High Flow Rate
0~100
MOQ
100$
Price
Single Bag Industrial Metal Filter Element High Flow Rate
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Lier
Certification: CE GB
High Light:

Lier Industrial metal filter element

,

metal filter element High Flow Rate

,

Single Bag Industrial Filter Element

Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 15~30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,
Supply Ability: 1000
Specifications
Materia: Stainless Steel
Type: Single Bag Filters/Multi-bag Filters
Applicable Industries: Manufacturing Plant, Food
Uses: Dust, Dust
Filter Rating: 34%-45%
Shape: Filter Tubes
Product Description

Industrial Filter Element , Manual Filter For Secondary Filter




Introduction
High flow rates

Complete stainless steel 304,316L structure

High temperature & High pressure design are available

Wide range of bag size for choice

Easy to clean






parameter

Type Model Dimension(mm) Connection Bag Flow rate(m3/h)
Diameter Height Size Q'ty(pc)
Single Bag Filters BJD1 220 550 2''Tri-Clamp(Coupling)/Flanged Type/Thread( NPT/BSP) #1 One 20
BJD2 220 950 #2 40
BJD4 130 650 #4 12
Muti-Bag Filters BJD2-2 400 1550 3'', 4", 5" Tri-Clamp(Coupling)/Flanged Type/Thread( NPT/BSP) #2 Two 80
BJD2-3 500 1550 #2 Three 120
BJD2-4 550 1550 #2 Four 160
BJD2-5 600 1550 #2 Five 200






Certificate
Single Bag Industrial Metal Filter Element High Flow Rate 0





Main technical parameters of manual industrial water filter

(1)  Working pressure≤0.6MPa.

(2)  The aperture of the filter screen is φ3~φ8mm.

(3)  Resistance at rated flow ≤ 0.05MPa.




photos

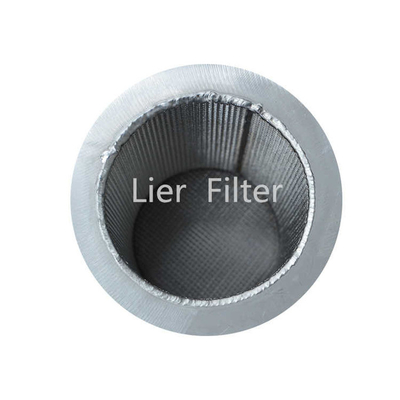

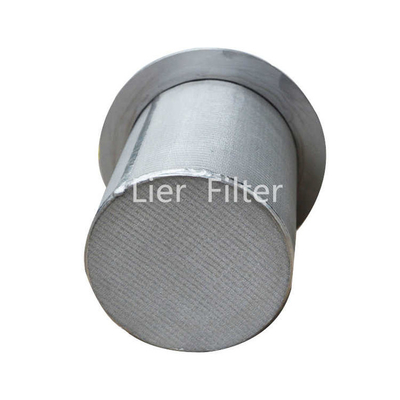

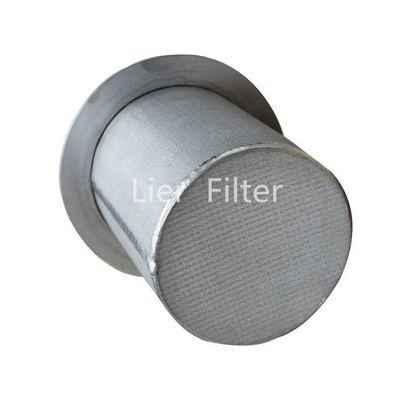

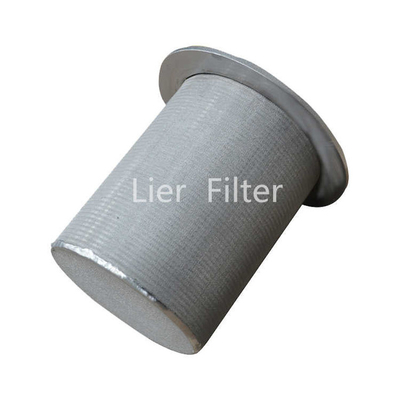

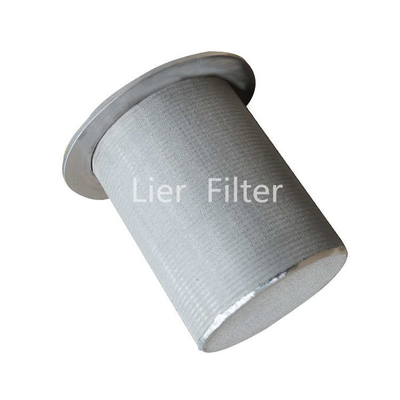

Single Bag Industrial Metal Filter Element High Flow Rate 1Single Bag Industrial Metal Filter Element High Flow Rate 2


Our Advantage

Our technical service department serves consumers throughout the working day. If you have any questions about purchasing, you can contact us at any time by email or phone,and we will provide technical guidance services.

Sales continue to grow and are exported overseas;

We are a professional manufacturer of filtration equipment. We have strict quality management system;

Focus on innovation and development;

Use fast transportation to provide the best service





transportation​
Single Bag Industrial Metal Filter Element High Flow Rate 3
