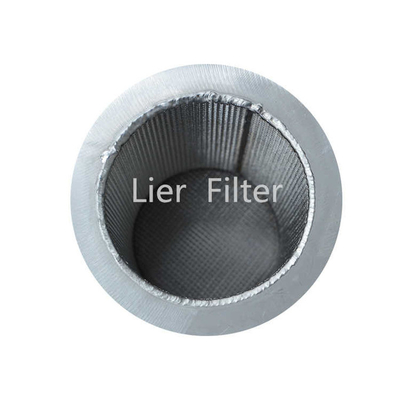

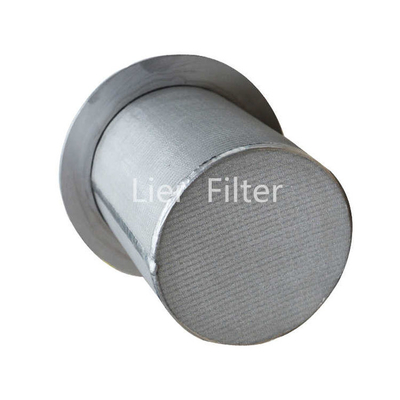

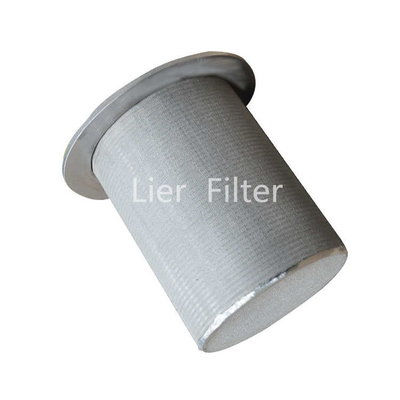

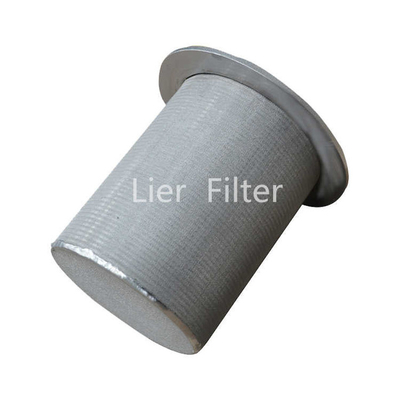

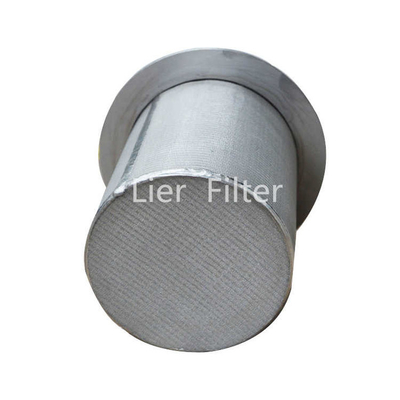

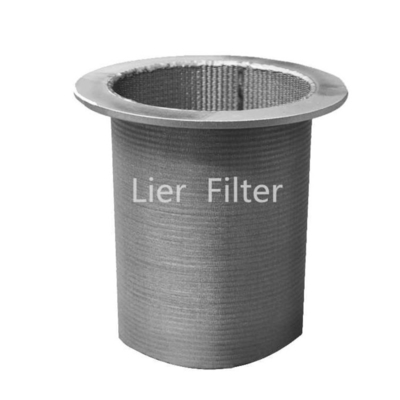

Manual Automatic Control Metal Filter Element 40m3/H Flow Rate
0~100
MOQ
100$
Price
Manual Automatic Control Metal Filter Element 40m3/H Flow Rate
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Lier
Certification: CE GB
High Light:

Automatic Control Metal Filter Element

,

Metal Filter Element 40m3/H Flow Rate

,

Manual Industrial Filter Element

Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 15~30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,
Supply Ability: 1000
Specifications
Materia: Stainless Steel
Material: Metal Fiber
Shape: Filter Tubes
Filter Rating: 34%-45%
Uses: Dust, Dust
Applicable Industries: Manufacturing Plant, Food
Product Description

Industrial Filter Element , Using Method Manual , Automatic Control





Introduction
The industrial filter is composed of shell, multi-element filter element, backwash mechanism, electric control box, reducer, electric valve and differential pressure controller. The diaphragm in the shell divides its inner cavity into upper and lower cavities, and the upper cavity is equipped with multiple filter elements, which makes full use of the filter space and significantly reduces the volume of the filter. Rinse the suction cups. When working, the turbid liquid enters the lower cavity of the filter through the inlet, and enters the inner cavity of the filter element through the baffle hole. The impurities larger than the gap of the filter element are retained, and the clean liquid passes through the gap to the upper cavity, and finally is sent out from the outlet.




parameter

Type Model Dimension(mm) Connection Bag Flow rate(m3/h)
Diameter Height Size Q'ty(pc)
Single Bag Filters BJD1 220 550 2''Tri-Clamp(Coupling)/Flanged Type/Thread( NPT/BSP) #1 One 20
BJD2 220 950 #2 40
BJD4 130 650 #4 12
Muti-Bag Filters BJD2-2 400 1550 3'', 4", 5" Tri-Clamp(Coupling)/Flanged Type/Thread( NPT/BSP) #2 Two 80
BJD2-3 500 1550 #2 Three 120
BJD2-4 550 1550 #2 Four 160
BJD2-5 600 1550 #2 Five 200





Certificate
Manual Automatic Control Metal Filter Element 40m3/H Flow Rate 0




photos

Manual Automatic Control Metal Filter Element 40m3/H Flow Rate 1Manual Automatic Control Metal Filter Element 40m3/H Flow Rate 2


Our factory Strength for Stainless steel filter element

1: Filtration Specialists with 10 years ‘ experience.

2: OEM Service for you and satisfy different markets demand.

3: Widely used in Aviation , Railway, Power plant, Coal mining, Construction mining etc

4: Samples for 1 pcs and small order 5pcs are allowed.

5: Professional technical data systems guaranteed the correctness of filter.






transportation
Manual Automatic Control Metal Filter Element 40m3/H Flow Rate 3
