Dia 5mm-20mm Stainless Steel Mesh Filter Valve Body Micro Filter Element

0~100
MOQ
10$~100$
Price
Dia 5mm-20mm Stainless Steel Mesh Filter Valve Body Micro Filter Element
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Stainless Steel
Filtration Precision: 0.22~50μm
Layer: Single Layer Or Multi Layers
Business Type: Factory
Stock: In Stock
Uses:: Shipbuilding Industry
High Light:

Dia 20mm Stainless Steel Mesh Filter

,

Dia 5mm Stainless steel Mesh Filter

,

Valve Body Micro Filter Element

Basic Infomation
Place of Origin: China xinxiang
Brand Name: Lier filter
Certification: CE GB
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 15~30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,
Supply Ability: 1000
Product Description

Metal Mesh Filter , Valve Body Micro Filter Element Series


Introduction

Sintered multi-layer valve filter element

Sintered multi-layer valve filter element is welded by vacuum electron beam,used for filtration of hydraulic oil and gas in hydraulic and air control system.The features of it are high precision,good rigidity,lower resistance,large flow capacity.And also it has advantages of cleanness,easy use,stable filtering aperture and longer service,it is alternative for sintered bronze powder filter element,and metal mesh filter supported by framework and even imported wire wound filter element, to make the serve system more stable and more reliable.It is widely used in many fields such as aerospace,aviation,hydraulic and machine,precision tool, and automatic control.



Features
Micro valve body stainless steel sintered filter element generally refers to the filter element welded by vacuum electron beam, and also refers to the filter element with diameter less than 20mm, the minimum diameter can reach 5mm, and the length is less than 100mm.

parameter

Core Components Servo valve filter element, servo Moog Model
Product name Servo valve filter element
Industrial filter element impurity hydraulic filter element
High quality filter element Industrial filter element
Applicable Industries Manufacturing Plant
Place of Origin Henan, China
OEM NO Industrial parts



Use environment

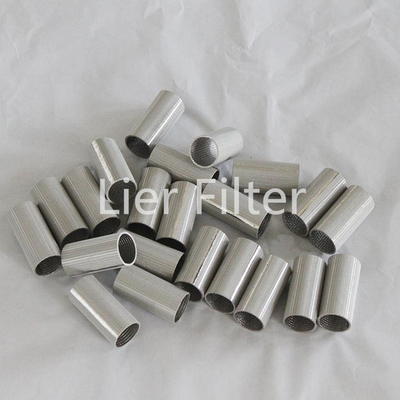

Dia 5mm-20mm Stainless Steel Mesh Filter Valve Body Micro Filter Element 0

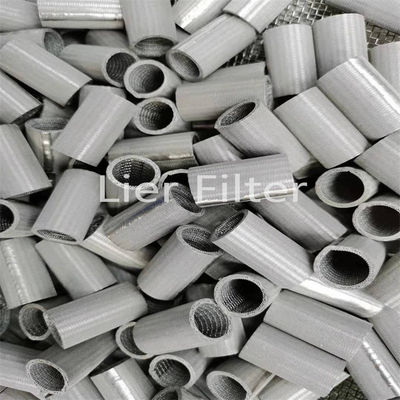

Dia 5mm-20mm Stainless Steel Mesh Filter Valve Body Micro Filter Element 1

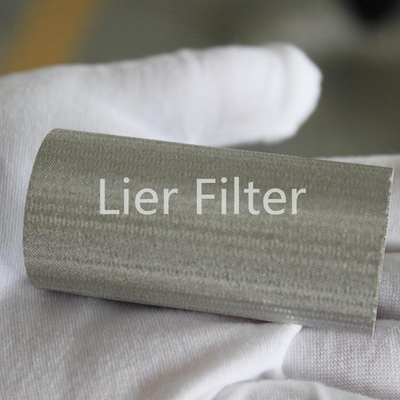

Dia 5mm-20mm Stainless Steel Mesh Filter Valve Body Micro Filter Element 2



Our Advantage

Our technical service department serves consumers throughout the working day. If you have any questions about purchasing, you can contact us at any time by email or phone,and we will provide technical guidance services.

Sales continue to grow and are exported overseas;

We are a professional manufacturer of filtration equipment. We have strict quality management system;

Focus on innovation and development;

Use fast transportation to provide the best service


transportation

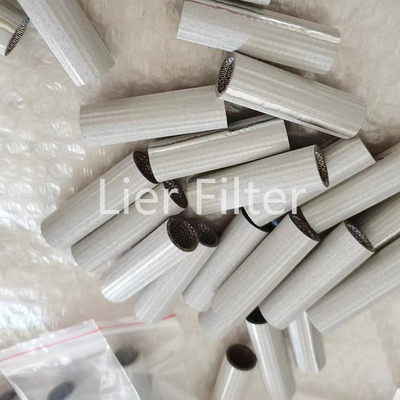

Dia 5mm-20mm Stainless Steel Mesh Filter Valve Body Micro Filter Element 3
